All Splash Guards in Stock Sizes
| Size | Corners |
|---|---|
| 30"W x 60"H | 4 Touch Corners |
| 30"W x 60"H | 10" Radius Corner |
| 32"W x 60"H | 4 Touch Corners |
| 32"W x 60"H | 10" Radius Corner |
No Cut Outs
| Size | Corners |
|---|---|
| 30"W x 72"H | 4 Touch Corners |
| 30"W x 72"H | 10" Radius Corner |
| 32”W x 72”H | 4 Touch Corners |
| 32”W x 72”H | 10" Radius Corner |

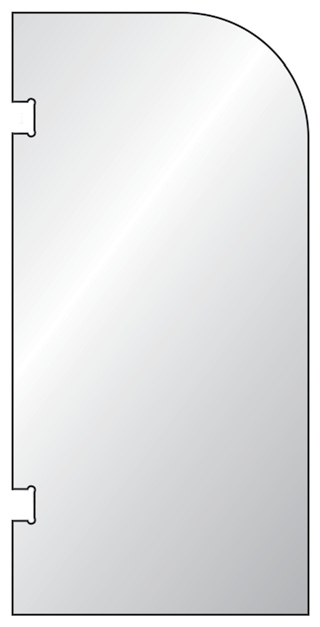

Splash Guards with Cut Outs
Splash Guards With Cut Outs are fabricated for (2) side mount hinges 8" on center from top and bottom. For Geneva/Pinnacle Hinges
| Size | Corner |
|---|---|
| 32"W x 60"H | (1) 10” Radius Corner |
| 32"W x 66"H | (1) 10” Radius Corner |
- 3/8" thick clear tempered glass with flat polished edges
- Radius splash guards have 3 touched corners and one 10" radius corner
- All splash guards individually cartoned with Styrofoam® protection all around
